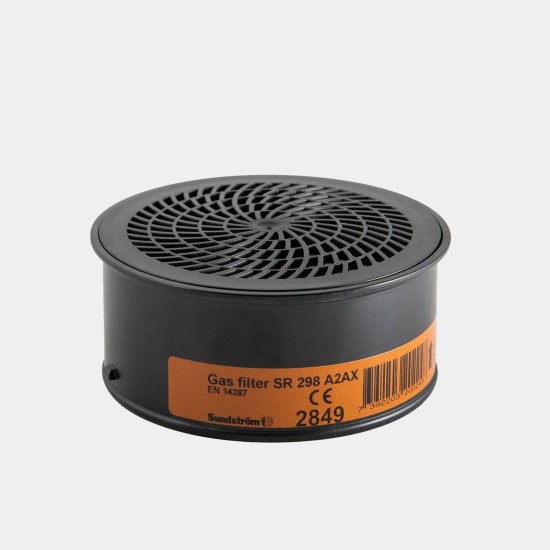

Sundström SR 298 Gas filter A2AX

Gas filter SR 298 is designed for use with Sundström half masks and full face masks. The filter is of type A2AX and provides protection against the following types of gases and vapours:

Type A protects against organic gases and vapours, such as solvents, with boiling points > +65 °C.

Type AX protects against organic gases and vapours, such as solvents, with boiling points ≤ +65°C.

The gas filter can easily be combined with particle filter SR 510 P3 R in order to obtain protection also against aerosols (particles), e.g. during spray painting.

Features

• Type A2AX gas filter

• Compatible with Sundström half masks and full face masks

• Can be combined with SR 510 P3 R particle filter for aerosol protection

• Pressure drop at 30 l/min: Approx. 100 Pa (≤ 140 Pa)

• Dimensions: Diameter 106/48 mm

• Weight: Approx. 200 g (≤ 300 g)

• Service temperature: -10 °C to +55 °C, < 90% RH

• Storage temperature: -20 °C to +40 °C, < 90% RH

• Approved to EN 14387:2004 + A1:2008

• Tested resistance times:

                        A2 (Cyclohexane 5,000 ppm): > 80 min (min. requirement: ≥ 35 min)

                        AX (Dimethylether 500 ppm): > 60 min (min. requirement: ≥ 50 min)

                        AX (Isobutane 2,500 ppm): > 70 min (min. requirement: ≥ 50 min)

Applications

Recommended for use with Sundström half masks and full face masks to protect against:

• Organic gases and vapours with boiling points > +65 °C (Type A)

• Organic gases and vapours with boiling points ≤ +65 °C (Type AX)

• Can be combined with SR 510 P3 R particle filter for aerosol protection, such as during spray painting

Size

• Diameter: 106 mm

• Height: 48 mm

• Weight: Approx. 200 g

Unit of Sale

• Each
